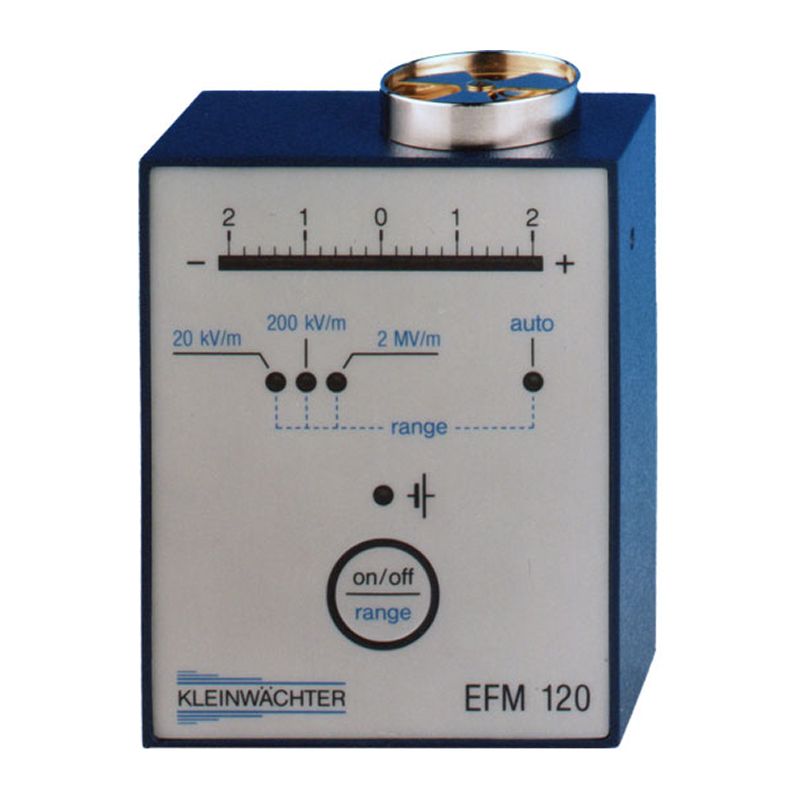

EFM 120

Small and handy electro field meter with 21-figure LED row with smooth transition, providing a scale-reading precision of approximately 5%.

Special Features: • Solid aluminium housing • LED bargraph for high scale-reading precision • Zero point with green LED • Built-in NiMH storage battery with permanent charging supervision • Analog writer output ± 1V for data recording • Easy appliance and maintenance Walking Test according to DIN 61340-4-5 (Together with optional pico software, hand-held electrode, and gage head MK11 S2)

Technical Specifications: • Measuring Range: ± 20 kV/m, ± 200 kV/m, ± 2 MV/m • Dimensions: 100mm x 80mm x 38mm (L x W x H) • Weight: Approx. 370g • Writer Output: ± 1V / Ri > 1kΩ

Scope of Delivery: • Transport case with conductive foam interior • Built-in 7.2V NiMH battery • Mains adapter 230V~ / 50Hz • Grounding cable with alligator clip • Measuring line to connect the writer output
